在储能系统的“心脏”深处，每一次电流的精准流转，都离不开集成母排的精准分配。在此背景下，中航光电推出多系列CCS集成母排产品，具备安全可靠、轻量化集成、多规格量产等优势，三大工艺品类灵活选型，精准匹配各类PACK结构设计需求，为电池系统的平稳运行提供一站式互连解决方案。

Every precise flow of electric current inside battery systems relies on accurate power distribution via CCS (Cell Contact System). Against this backdrop, JONHON has launched a lineup of CCS featuring outstanding safety, lightweight integration and mass-production. With three core construction options for customized selection, JONHON's products fit diverse PACK structural designs and deliver one-stop interconnection solutions to ensure stable operation of battery systems.

PET膜热压集成母排

PET Laminated CCS

线路选型：数据采集系统兼容FPC、FDC、FFC多种布线形式，选型灵活；

量产规格：可承接1m×0.8m以内尺寸产品批量生产；

结构优势：整体轻薄规整、集成度高，提升电池包空间利用率与组装效率；

应用场景：轻量化设计，适配新能源汽车、储能等各类大尺寸电池包项目。

Circuit configuration: Supports FPC, FDC and FFC for flexible customization.

Production dimension: Mass production available for dimensions up to 1m×0.8m.

Structural merits: Ultra-thin, compact and highly integrated design improves space utilization and assembly efficiency.

Application: Lightweight construction suited for large-format battery packs of EVs and energy storage systems.

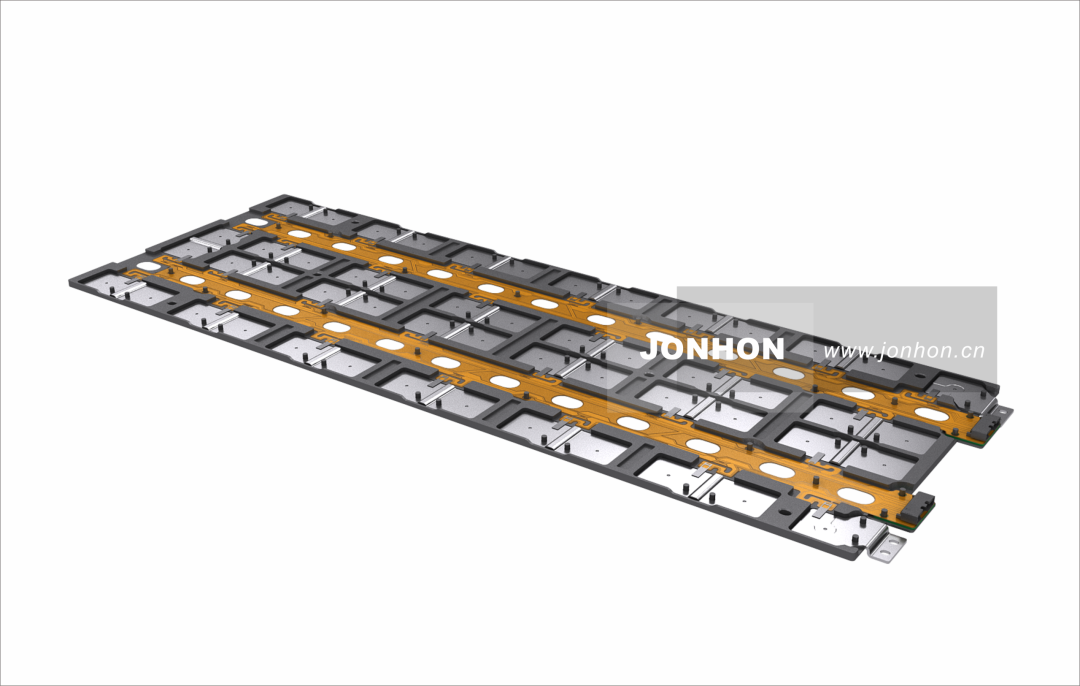

FPC+吸塑支架集成母排

FPC+Thermoformed Plastic Frame CCS

合规标准：FPC符合IPC-6013挠性及刚挠印制板的鉴定及性能规范，品质有据可依；

安全防护：过流5A可在3s内快速熔断，FPC柔性分支可缓冲电池包膨胀形变；

生产能力：自有SMT产线，支持2.5m以内FPC-A量产，最大量产尺寸2.5m×0.8m。

Compliance: FPC per IPC‑6013

Safety feature: Built‑in overcurrent protection fuses within 3 seconds at 5A overload; Flexible FPC tails accommodate pack expansion.

Manufacturing capacity: In‑house SMT lines; Supports mass production of FPC‑A up to maximum dimension of 2.5m×0.8m.

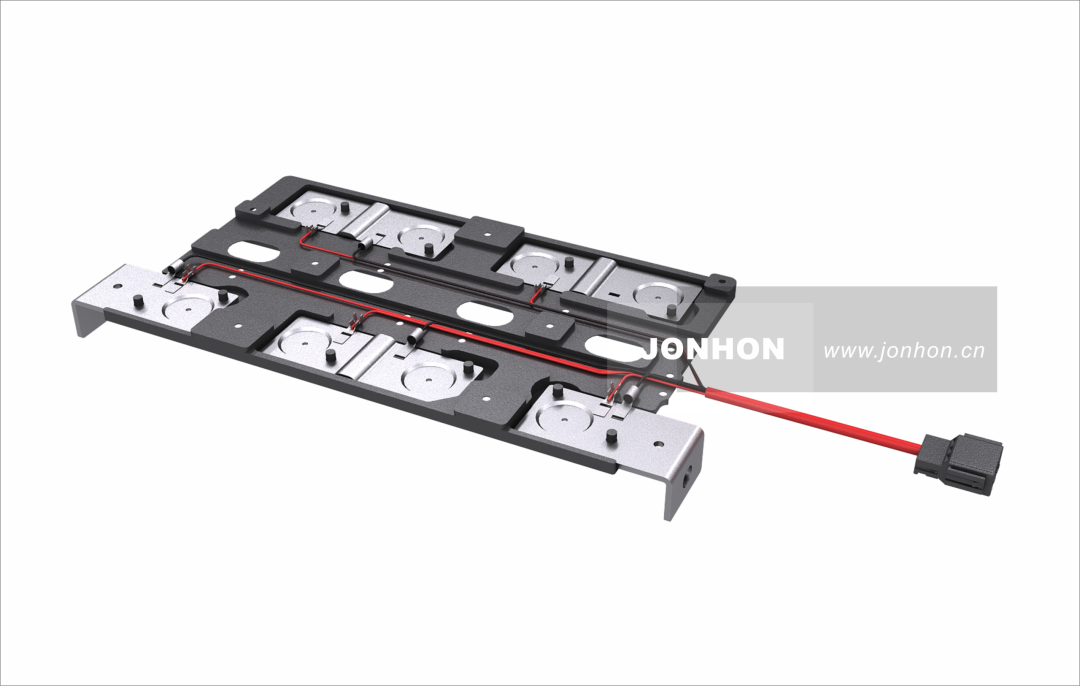

线束+吸塑支架集成母排

Wire Harness+Thermoformed Plastic Frame CCS

线束标准：线束严格按照QC/T 29106《汽车电线束技术条件》加工；

使用寿命：搭载玻封NTC元器件，满足20年长效使用需求；

性价比优势：支持快速打样，前期模具投入成本少，定制落地性价比高。

Harness specification: Compliant with QC/T 29106.

Service life: Glass-sealed NTC enables 20-year service life.

Cost performance: Quick sampling, low tooling cost and cost-effective customization.

JONHON

中航光电CCS集成母排以多元化工艺路线、过硬的安全与寿命指标，解决电池包集成痛点，用精细化互连产品，助力客户实现电池包轻量化、高安全、高效率量产落地。

JONHON’s CCS products adopt diversified processes with robust safety and service-life performance to resolve battery pack integration challenges. Our precision interconnect products enable customers to realize lightweight, safe and high-efficiency mass production of battery packs.
